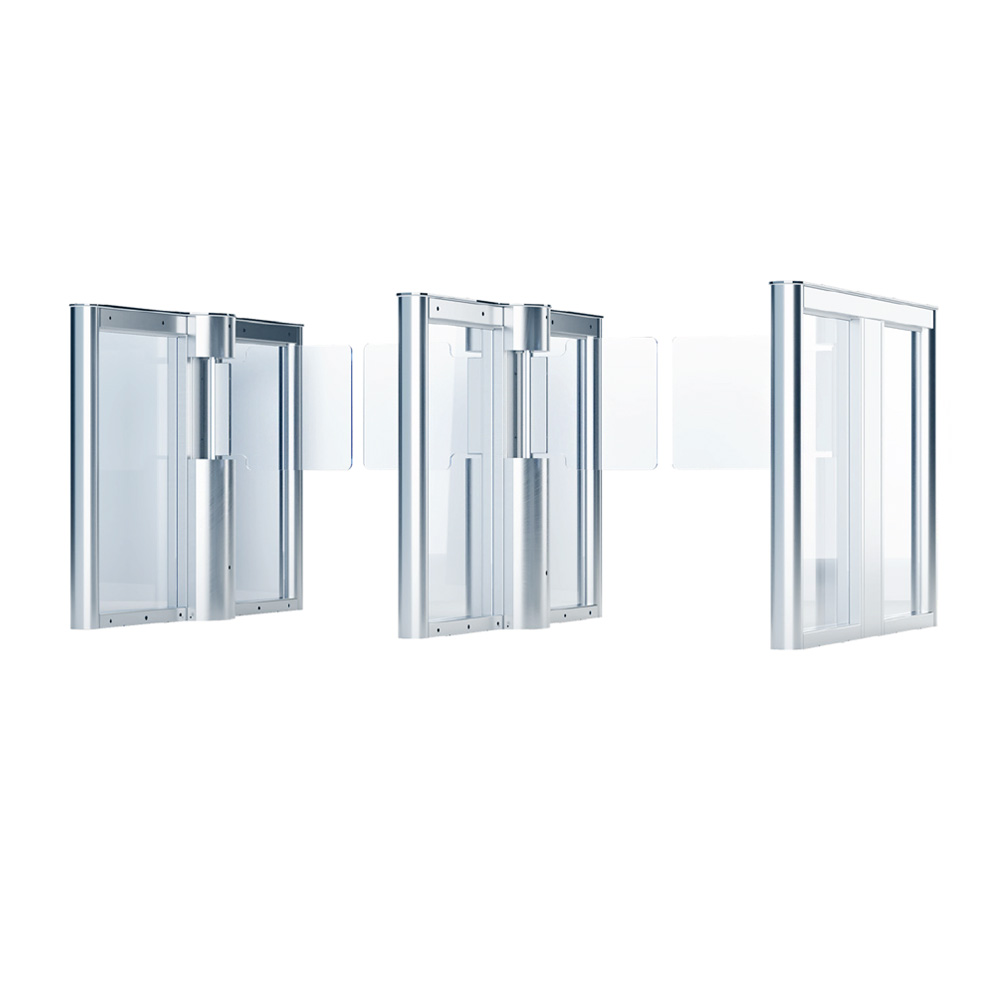

CPW-143Y Customs Optical Turnstile

Description The CPW‑143Y is an advanced, high‑security double‑gate turnstile optimized for environments where rigorous identity verification and controlled pedestrian flow are essential. Featuring interlocking swing doors, the CPW‑143Y ensures the second gate remains locked until authentication via face recognition, ID/Passport scan, or QR code is successful—strongly reducing unauthorized entry and tailgating. The elegant housing combines tempered glass side panels with a refined finish for a modern aesthetic that fits airports, immigration checkpoints, high‑speed rail stations, and other critical access zones. Built for both reliability and integration, the mechanism uses a modular design with precision CNC‑machined components and DSP ARM motor control. Safety is built in with triple anti‑pinch protection (infrared, mechanical, current detection), and the system supports evacuation mode with gate release on power failure. Dimension Drawing Key Features Double‑door interlocking mechanism: one door opens only after the other closes, enhancing security Multi‑modal authentication: face recognition, ID/passport scanning, QR code reading Strong anti‑tailgating logic with photo‑electric matrix detection Modular mechanism structure with high‑precision CNC components and long service life (10   million cycles) Triple anti‑pinch protection: infrared, mechanical, and current‑detection safety systems Fast throughput (approx. 30–45 people/min), evacuation capable up to ~60 people/min Lane width up to 900 mm available; customizable cabinet size, material, and finish Power: AC 100‑240 V, 50/60 Hz; relay & dry‑contact I/O for system integration Applications International Airports Immigration & Customs Halls Embassies and Secure State Facilities Government and Transit Infrastructure VIP Entry Zones and Border Clearance   Dimensions INSTALLATION Installation Services Available See our Portfolio of Work Here   *Please note Freight is Additional Charge. Ships Worldwide.
